The APM32F405/407 industrial-grade, high-performance MCUs stand out with impressive CPU computing performance, generous storage capacity, and enhanced EMMC capabilities. Designed to meet the requirements of complex program data computing and storage, these MCUs include on-chip PHY high-speed OTG units, a 100Mb Ethernet MAC, and diverse communication peripherals. Together, they provide comprehensive enhancements for diversified control and extensive product connectivity.At present, it can be widely used in PLC, electric welding machine, VFD, EV charging station, inverter and servo driver.

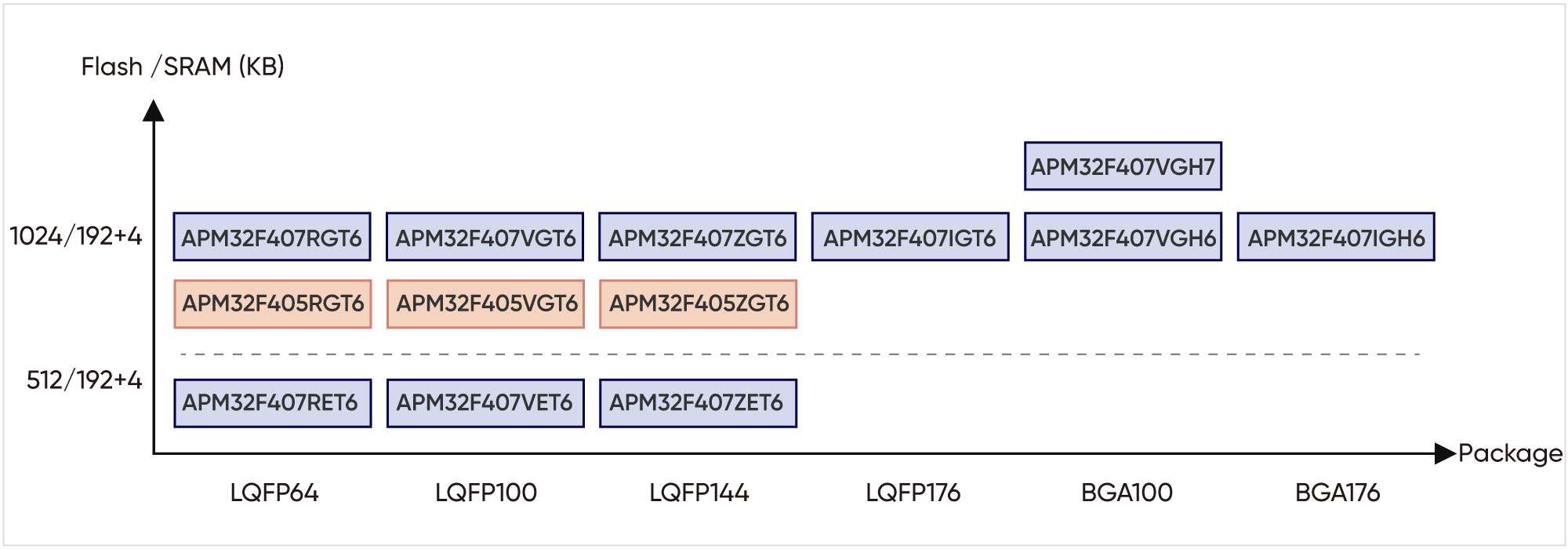

Packaging Roadmap

Performance

System

  • Arm® Cortex® -M4F
  • Working frequency up to 168MHz
  • Support single FPU
  • Support DSP instruction

Memory

  • Flash: 512KB/1MB
  • SRAM: 192KB
  • SDRAM: 2MB(optional)
  • Support external memory extension

Power Consumption

  • VDD/VDDA: 1.8V~3.6V
  • Backup domain power VBAT: 1.65~3.6V
  • Support POR/PDR
  • Support PVD

Timer

  • 16/32-bit universal timer: 8/2
  • 16-bit advanced timer: 2
  • 16-bit basic timer: 2
  • Watchdog timer: 2
  • 24-bit system timer: 1

Analog Peripherals

  • 12-bit ADC: 3, External channel: 24
  • 12-bit DAC: 2

I/O

  • Up to 140 I/Os
  • Map to external interrupt vectors

Debug Mode

  • SWD
  • JTAG

Peripherals

  • U(S)ART: 6
  • I2C : 3
  • SPI : 3
  • I2S: 2
  • DCI: 1(F407)
  • USB OTG: 3
  • CAN: 2
  • SDIO: 1
  • Ethernet: 1(F407)
  • EMMC: 1
  • Support SDRAM

Package

  • LQFP64/100/144/176
