As the automotive electronic and electrical architecture accelerates its evolution toward a "central computing + regional control" model, the requirements for MCUs in various edge execution units such as vehicle body control systems, lighting systems, thermal management systems, and sensor nodes are undergoing significant changes. These MCUs must not only meet stringent requirements related to functional and information security, but also achieve a delicate balance between cost, power consumption, and supply chain stability.

As an important new member of the G32A automotive MCU family, Geehy officially announces the mass production of the G32A1085/1065/1045 series – highly reliable automotive MCUs based on the Arm® Cortex® -M0+ core.

Safe and reliable, meeting automotive-grade performance requirements

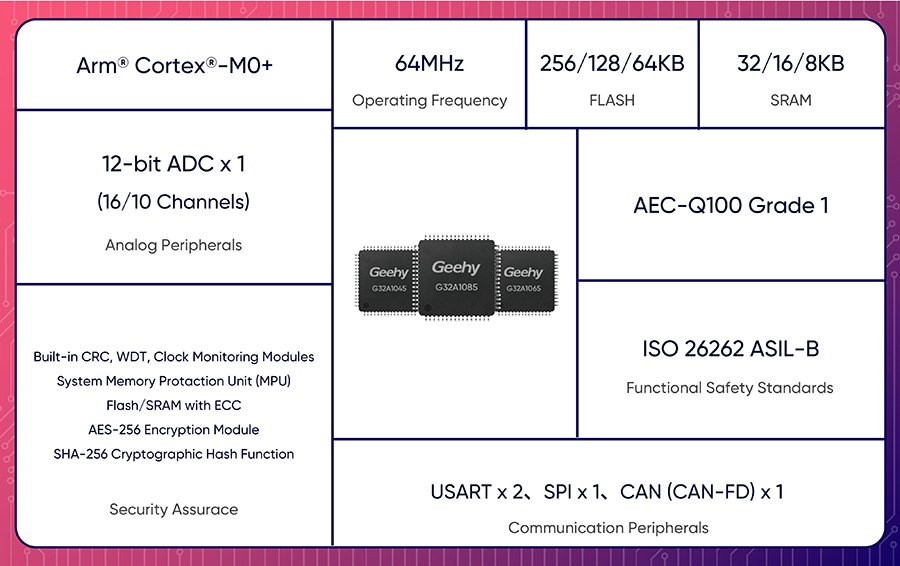

Basic Performance

• Core: Arm® Cortex® -M0+, with integrated Memory Protection Unit (MPU)

• Frequency: Up to 64MHz, 5-channel DMA

• Memory: PFlash 256/128/64KB（ECC）、DFlash 32/16KB（ECC）、SRAM 32/16/8KB（ECC）

• Operating voltage: 2.75~5.5V

• Operating temperature: -40°C to 125°C

• Automotive-grade certification: AEC-Q100 Grade 1

• Functional Safety: ISO 26262 ASIL-B

Timers and Analog Peripherals

• One 16-bit advanced timer (7-channel PWM output + braking function) – Ideal for motor control and ultrasonic sensors

• Three 16-bit general-purpose timers (4 channels each) – Used for PWM dimming, pulse measurement, and input capture

• Three 16-bit basic timers + One RTC

• One 12-bit ADC (9-bit accuracy across the entire temperature range, with up to 16 external channels and 3 internal channels)

Communication and I/Os

• 2×LPUSART、1×LPSPI

• 1×CAN (Support CAN 2.0A/B and CAN FD）

• Up to 55 I/Os can be mapped to external interrupt vectors

Functional Safety and Information Security

The G32A1085/1065/1045 series integrates security capabilities directly into the hardware at the underlying level:

• Functional Safety: MPU, CRC, independent watchdog, clock monitoring, full ECC for Flash/SRAM

• Information Security: TRNG true random number generator, AES256 encryption module, SHA256 hashing function, 96-bit unique ID

•This means that, from code storage to data transmission, and from key generation to authentication, G32A1085 provides hardware-level protection, significantly reducing the burden of software-based security development.

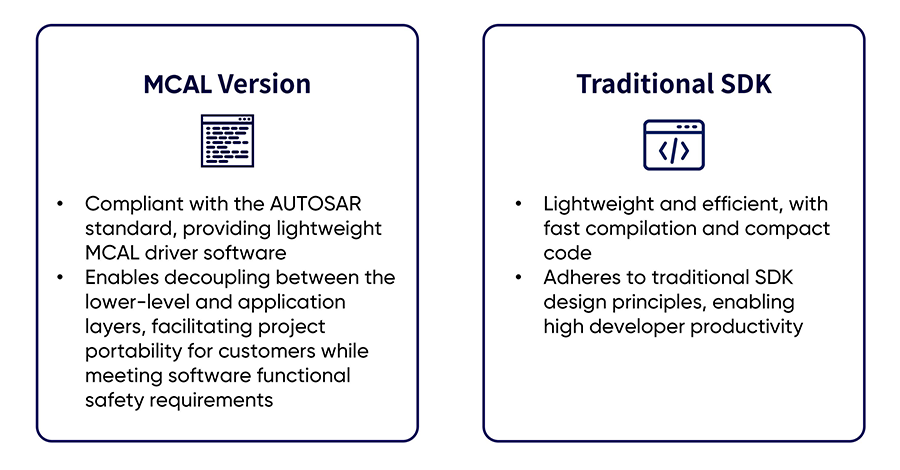

Software Ecosystem: Two versions of the SDK, balancing quality and efficiency

Geehy provides two complete software development kits for the G32A1085/1065/1045 series, to meet the requirements of different project phases and quality systems.

Fully domestic supply chain: From design to final testing, fully under domestic control

The G32A1085/1065/1045 series represents a complete domestic supply chain from chip design, wafer manufacturing to packaging and testing. This means not only more stable production capabilities, predictable delivery times, but also more efficient local technical support and rapid response times. In the context of increasing adoption of domestic automotive-grade chips, the G32A1085/1065/1045 series provides customers with a reliable and secure MCU solution for their needs.

Three mass-production reference solutions: Reducing the time from evaluation to mass production

Geehy has developed three complete reference design solutions based on the G32A1085. All of these solutions have passed functional testing.

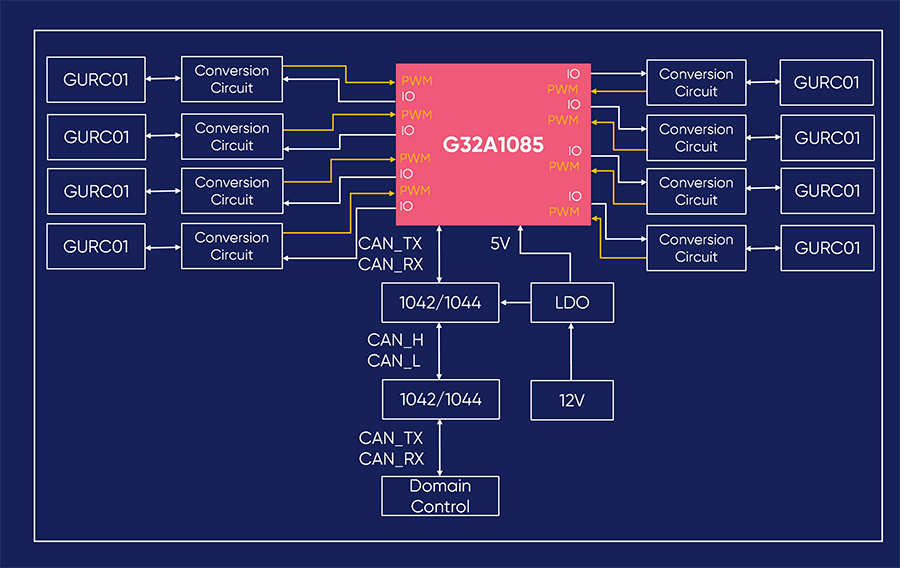

Solution 1: Ultrasonic Radar

• Integrates multiple timer modules for controlling the transmission and reception of ultrasonic reverse radar signals, ensuring data integrity during simultaneous transmission and reception across 8 channels.

• Integrated power monitoring with ADC sampling for timely response to under/over-voltage faults

• The system utilizes a CAN bus for expansion interfaces and provides custom algorithm interfaces. Developers can flexibly add features such as custom distance thresholds, adjustable alarm logic, multi-device coordination, and OTA updates based on the main control unit.

• Equipped with a high-performance computing core, it performs multiple software-based filters, temperature compensation, clutter removal, and range calibration on the raw echo data transmitted by the 8-unit GURC01 . The use of a dedicated GURC01 ultrasonic module simplifies the hardware architecture and reduces BOM costs.

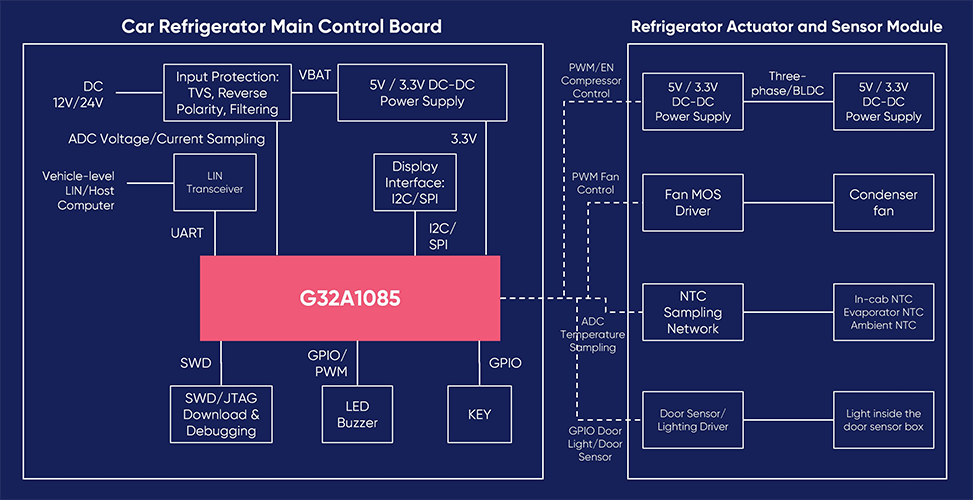

Solution 2: In-vehicle Refrigerator Control

• Through mechanisms such as multi-dimensional monitoring, fault classification, watchdog systems, startup protection, and lockout features, the risk of uncontrolled operation and post-sales failures is significantly reduced, meeting automotive-grade safety requirements.

• Utilizes Boot verification, parameter CRC checks, permission controls, and upgrade tracking to prevent the injection of illegal parameters and faulty firmware, ensuring the integrity of system operations.

• By utilizing highly integrated peripherals, reducing the number of external components, and enabling parameterized reuse across platforms, BOM costs, PCB area, as well as development and maintenance expenses are effectively reduced, thereby enhancing product competitiveness.

• Integrates DTC, freeze-frame functionality, online upgrades, and production testing diagnostic tools. Significantly improves the efficiency of mass production testing and the speed at which post-sales failures can be identified, thereby reducing maintenance cycles.

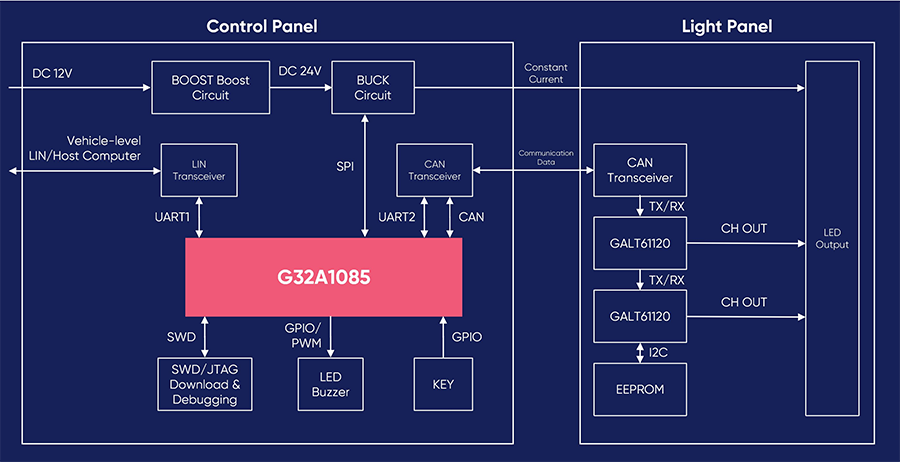

Solution 3: Automotive ADB Headlight

• Focuses on essential peripherals required for the headlight control unit (communications, SPI, CAN, GPIO, Timer, diagnostics, basic lighting functions). Avoids excessive computing power, reducing BOM costs and software complexity.

• Integrated with watchdog, fault input, ADC sampling, communication verification, timeout protection, and state machine shutdown features. Key states are traceable. Power supply and communication links include fault detection and protection mechanisms.

• Provides lightweight MCAL support with reliable coding standards, accelerating mass production integration.

— Products are now available for sample requests and bulk orders —

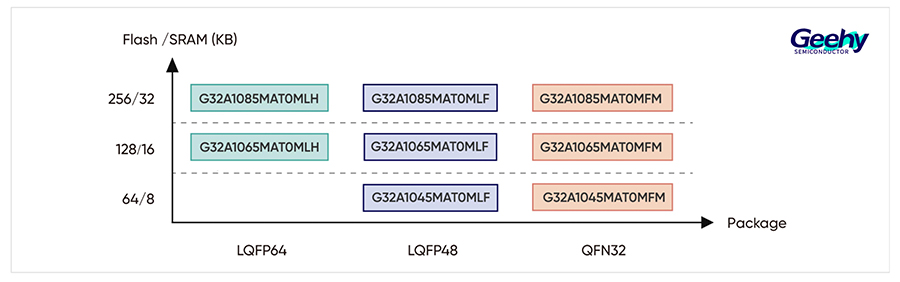

G32A1085/1065/1045 Series Roadmap

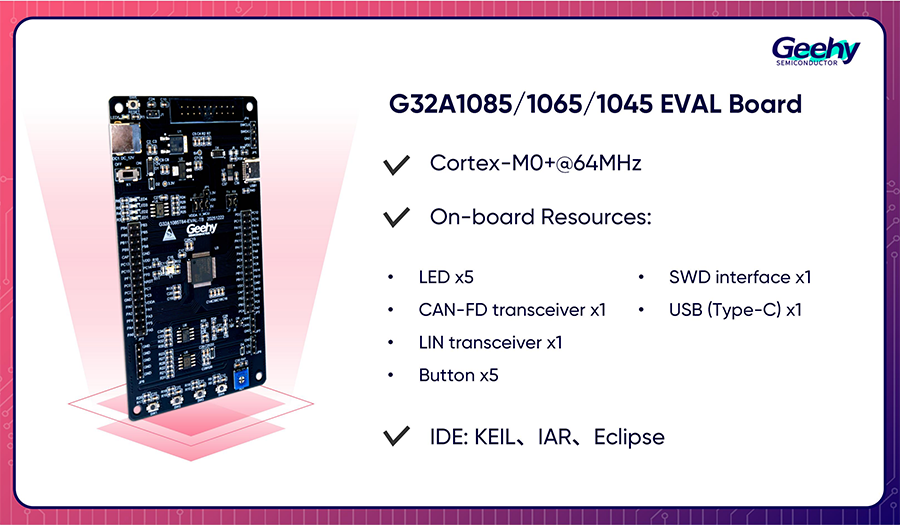

Complementary Evaluation Board

From M4 to M0+, Geehy's G32A automotive-grade MCU series covers the entire range of components, from main controllers to edge execution nodes. With precise specifications, robust security features, a complete software ecosystem, and a fully domestic supply chain, the G32A1085/1065/1045 models offer a highly reliable, secure, and cost-effective domestic solution for the growing market of automotive smart actuators.
