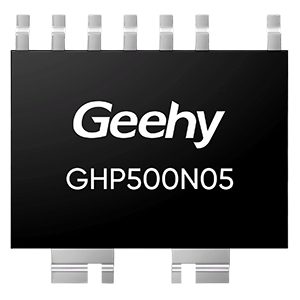

The GHP500N05 Intelligent Power Module (IPM) operates on a 10V–20V supply and supports 3.3V/5V logic. It integrates bootstrap diodes and a temperature sensor output, combining a 600V gate driver with a 500V/5A fast-recovery MOSFET for a compact drive + power stage. This integration simplifies circuit design and improves system efficiency, making it ideal for high-voltage ceiling fans, water pumps, range hoods, and high-speed hair dryers.

Performance

Operating Voltage: 10V – 20V

Logic Compatibility: 3.3V/5V

Protection Features

Undervoltage and Overtemperature Protection
Shoot-through Prevention
Deadband Time: 400ns

Built-in bootstrap diode and temperature sensor output

Built-in 500V/5A fast-recovery MOSFET

Integrated 600V gate driver

dv/dt Immunity: 50V/ns

VS pin logic operating voltage: –11 V

Logic input negative voltage tolerance: –11 V

Selection Tools

All Products

Clear the Filter

0 results total entry

Download Spreadsheet

Compare	Part No.	Output Channel	Driver Power Transistor Type	VoltageRating(V)	CurrentRating(A)	Rdson(Ω)	BSD	VOT	UVLO	Device

Documentation

Title	Type	Version	Format	Size	Update Date
GHP500N05 User Manual	User Manual	V1.0	pdf	772.32 KB	February 26, 2026
