System
Arm® Cortex®-M0+ - Operating frequency: 64MHz
- 5-Channel DMA
Memory
PFlash: 128KB with ECC - DFlash: 32KB with ECC
- SRAM: 16KB with ECC
Power Supply and Power Supply Management
Operating voltage: 2.75 V to 5.5 V - Supports POR/LVR
Timer
16-bit advanced timers: 1 - 16-bit general-purpose timers: 3
- 16-bit basic timers: 3
- RTC: 1
Analog Peripherals
12-bit ADC: 16 channels
I/Os
Up to 55 I/Os - All I/Os mappable on external interrupt vectors
Peripherals
LPUART: 2 (all supporting LIN) - LPSPI: 1
- CAN: 1 (supporting CAN FD)
Safety Features
Built-in CRC/WDT/clock monitoring module - System Memory Protection Unit (MPU)
- Flash/SRAM with ECC
- AES256 encryption module, SHA256 cryptographic hash function
- TRNG (True Random Number Generator)
- 96-bit unique ID
Ecosystem
Provides AUTOSAR lightweight MCAL driver software - Provides a simplified version of the classic SDK
- Provides development boards and SDK development kits
- Supports IDEs such as Keil, IAR, and Eclipse GCC
Package

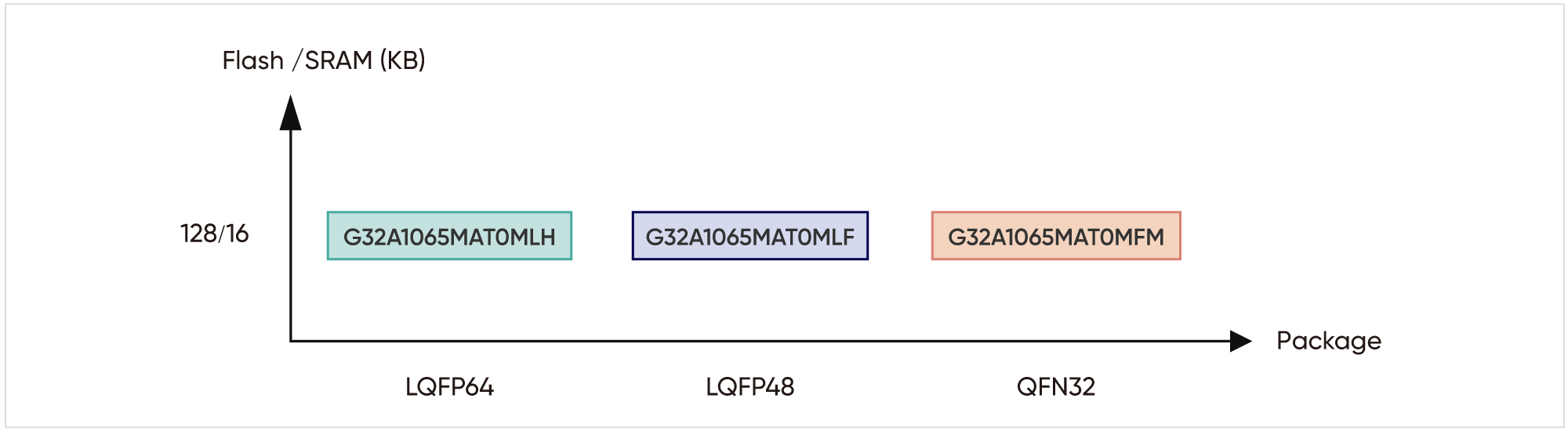

LQFP48/64; QFN32
Automotive Standards
AEC-Q100 Grade 1 - ISO 26262 ASIL-B
