As intelligent manufacturing and Industry 4.0 continue to grow, Programmable Logic Controllers (PLCs), often called the “central nervous system” of industrial automation, are upgrading quickly.

Modern manufacturing requires more flexible production, multi-axis coordination, and precision machining. As a result, PLCs must process more complex control logic and larger amounts of data. Traditional mid-to-low-end PLCs often face problems such as slow response, limited timer resources, and insufficient memory. The main control MCU is a key factor in the PLC scan cycle, which determines the system's response speed. Its computing power and peripheral integration directly set the PLC's performance ceiling.

Geehy APM32F427 High-Performance MCU

for Industrial PLC Applications

The Geehy APM32F427 series high-performance MCU is designed to solve key PLC design challenges. With strong performance, larger memory, rich peripherals, and high reliability, it provides a competitive domestic main control chip solution for mid-to-high-end PLCs.

High-Performance Core, Shortening PLC Scan Cycles

• Uses an Arm® Cortex®-M4F core running at up to 240MHz. The high clock speed and fast instruction execution help shorten PLC scan cycles and improve response speed, making it suitable for high-speed counting, pulse control, and motion control.

• Integrates a single-precision FPU and DSP instruction set, allowing efficient processing of common PLC tasks such as logic operations, mathematical calculations, and PID control.

Large-Capacity Storage, Supporting Complex PLC Programs

• Flash: Up to 1MB, supporting large user programs and firmware storage. The first 256KB supports zero-wait access, helping improve code execution efficiency.

• SRAM: 448KB + 4KB backup, meeting the needs of large data caching and data retention.

32-Bit High-Precision Timers, Solving Long-Cycle Control Challenges

In PLC applications, timer resources directly affect pulse measurement range, motor control accuracy, and encoder counting capability. Many MCUs only provide 16-bit timers, which have short overflow periods and may not meet long-cycle, high-precision industrial control needs at high clock speeds. The Geehy APM32F427 high-performance MCU solves this problem with a powerful timer design.

• 4 × 32-bit general-purpose timers: At 240MHz, each timer can run for up to about 17.9 seconds before overflow, reducing interrupt frequency and CPU workload.

• 2 × 16-bit advanced timers + 6 × 16-bit general-purpose timers: Support dead-time insertion, brake protection, multi-axis motion, multi-channel high-speed counting, and complex timing control for advanced PLC applications.

• High-precision long-cycle measurement: Accurately measures low-speed pulse signals, such as flow meters and encoder long-cycle signals, without timer cascading or software extension.

• Simplified encoder interface: Supports 32-bit position counting without software stitching, improving position control accuracy and reliability.

• Supports input capture/output compare, wide-range PWM output, and high-speed pulse counting, making it suitable for encoders, flow meters, and servo control.

Rich Peripheral Resources, Enabling Highly Integrated Single-Chip PLC Design

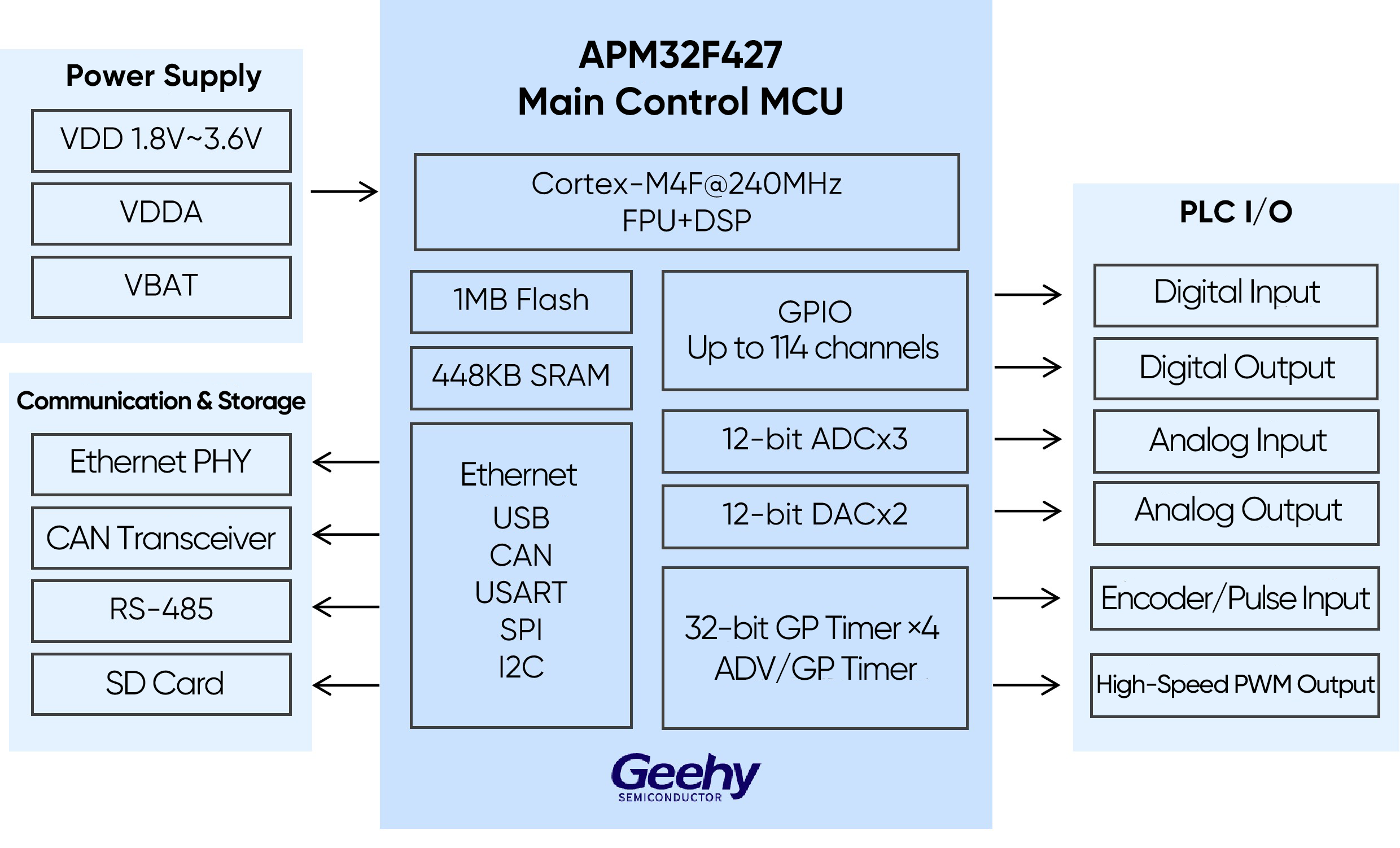

The APM32F427 single-chip solution integrates key peripherals required for PLC design. It covers I/O control, pulse control, analog processing, and HMI communication, helping reduce external expansion chips, BOM cost, and PCB area.

• Communication interfaces: U(S)ARTx6, SPIx3, QSPIx1, I2Cx3, CANx2, USB_OTGx2, Ethernet (MII/RMII) x1

• Analog peripherals: 12-bit ADCx3, 12-bit DACx2, supporting multi-channel analog input and output

• External Memory Controller (EMMC): Supports SMC and DMC, and can expand SDRAM, NOR/NAND Flash, SRAM, and other memory for large-capacity data buffering

Industrial-Grade Quality, Ensuring Stable Operation in Harsh Environments

• Operating temperature: -40°C to 105°C (ambient), -40°C to 125°C (junction temperature)

• ESD rating: HBM ±4000V, CDM ±1000V

• Supports power-on, power-off, under-voltage reset, and programmable voltage detection

Flexible Packaging, Covering the Full PLC Product Line

• Available in LQFP48/64/100/144, BGA100, and QFN48 packages

• Up to 114 I/O pins, suitable for compact PLCs and high-density I/O PLCs

• With external memory expansion, it can support products from entry-level PLCs to high-performance PLCs

Summary

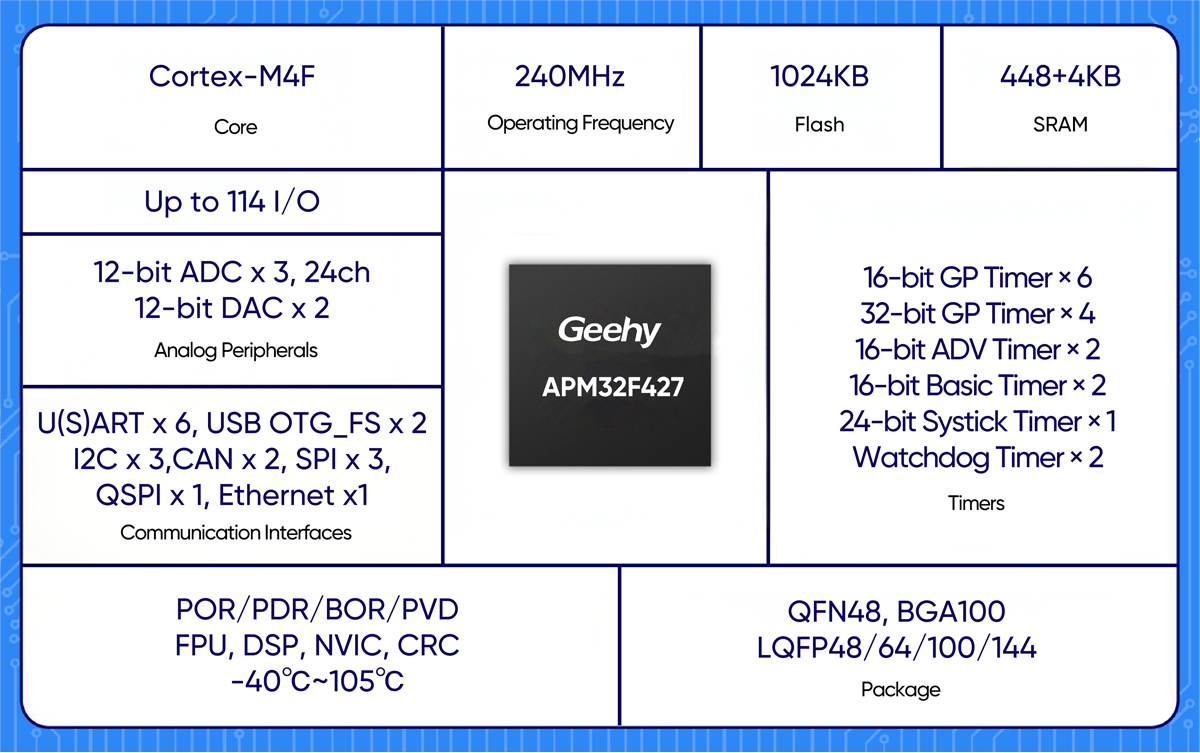

Core Advantages of APM32F427 Enabling PLCs

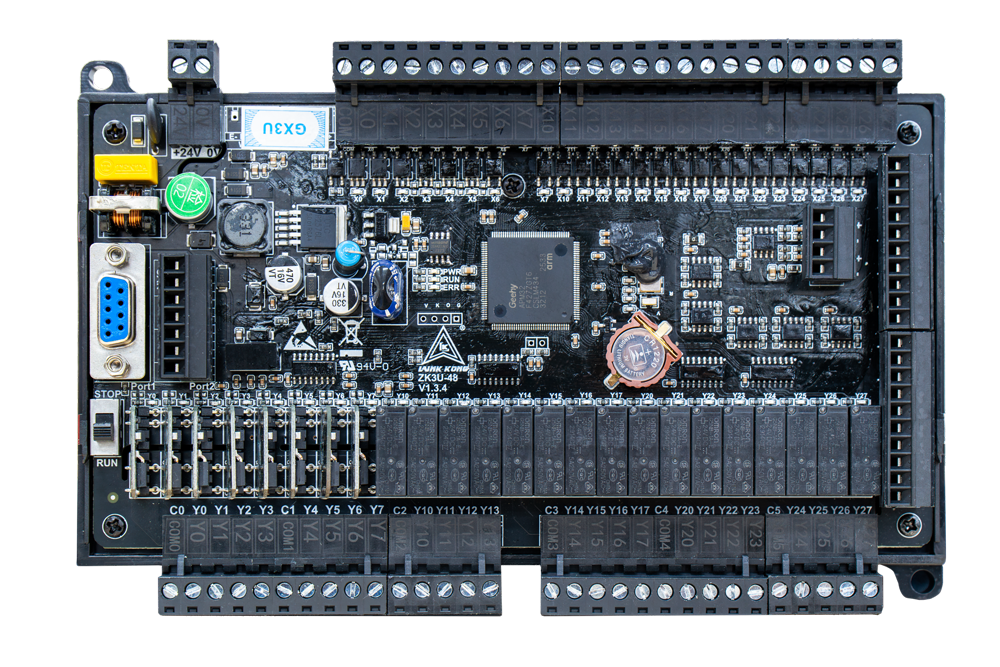

PLC Programmable Logic Controller Solution Board
