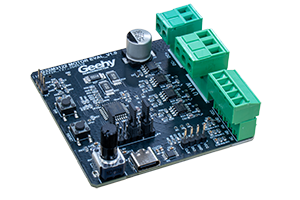

The Geehy G32M3122 motor evaluation board supports BLDC and PMSM motors in 12–30V low-voltage applications. It is designed for initial solution validation and software verification, helping users evaluate Geehy motor control chips and streamline development, algorithm porting, and testing.
Electrical specifications: 12–30V DC wide input, up to 60W
Supported motor types: BLDC, PMSM
Supported encoder types: Hall, optical, magnetic
Communication interfaces: UART, SPI, I2C
Current sensing methods: single-shunt, dual-shunt, three-phase back-EMF
Chip advantages: integrated 3P+3N 40V gate driver and 5V/60mA LDO
|
|
|
Format | Size |
|
|---|---|---|---|---|---|
| G32M31xx_hall_FOC | Demo | - | 160.36 KB | August 18, 2026 | |
| G32M31xx_Sensorless_FOC | Demo | - | 160.36 KB | August 18, 2026 | |
| G32M31xx_ BLDC | Demo | - | 160.36 KB | August 18, 2026 |
