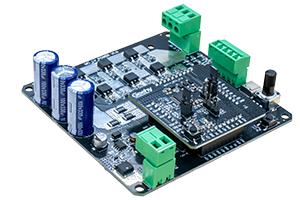

The Geehy G32M3114 motor evaluation board supports BLDC and PMSM motors in 12–72V applications. It is designed for initial solution validation and software verification, helping users evaluate Geehy motor control chips and streamline development, algorithm porting, and testing.
Electrical specifications: 12–72V DC wide input, up to 100W
Supported motor types: BLDC, PMSM
Supported encoder types: Hall, optical, magnetic
Communication interfaces: UART, SPI, I2C
Current sensing methods: single-shunt, dual-shunt, three-phase back-EMF
Chip advantages: integrated 6N 200V gate driver and 5V LDO
|
|
|
Format | Size |
|
|---|---|---|---|---|---|
| G32M31xx_hall_FOC | Demo | - | 160.36 KB | August 18, 2026 | |
| G32M31xx_Sensorless_FOC | Demo | - | 160.36 KB | August 18, 2026 | |
| G32M31xx_ BLDC | Demo | - | 160.36 KB | August 18, 2026 |
