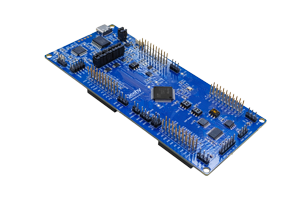

The G32R502 Evaluation Board is a high-performance development platform for the G32R502 real-time MCU/DSP. It uses the G32R501MCT7 as the main controller and includes an onboard Geehy-LINK debugger. With Keil MDK V5.40 or later, users can program firmware and debug applications online.The G32R502 Evaluation Board provides GPIO, UART, QEP, CAN, SPI, and other peripherals. Its standardized ExpandPack interface allows functional modules to be connected and expanded easily, enabling efficient function verification and product development.
Reset KEY: 1
Programmable LEDs: 2
Communication interfaces: 3× UART, 1× QEP, 1× CAN, and 1× SPI
Onboard Geehy-LINK V2 debugger with USB Type-C
80-pin ExpandPack interface
Supported IDEs: Keil MDK-Arm V5.40 or later and IAR Embedded Workbench V9.70.4 or later
Real-time operating system: FreeRTOS
|
|
|
Format | Size |
|
|---|---|---|---|---|---|
| G32R502 EVAL Schematic Diagram | Development Board Schematic | V1.0 | 575.59 KB | September 15, 2026 | |
| G32R502 IntLib | Package Library | V1.0 | IntLib | 283.5 KB | September 15, 2026 |
| G32R502 SCHLIB | Package Library | V1.0 | SCHLIB | 107.5 KB | September 15, 2026 |
| G32R502 PcbLib | Package Library | V1.0 | PcbLib | 418.5 KB | September 15, 2026 |
| G32R5xx_SDK | SDK | V1.1.1 | zip | 56.34 MB | September 24, 2026 |
| G32R5xx_DFP pack | Pack | V1.0.3 | pack | 2.81 MB | September 24, 2026 |
