In recent years, the domestic ice maker market has continued to grow. In commercial use, new-style tea shops, coffee shops, bars, cold-chain logistics, and fresh e-commerce are driving demand for commercial ice makers. In household use, younger consumers’ pursuit of a refined lifestyle and “ice freedom” has also increased demand for home ice makers.
Efficient ice maker operation depends on coordinated control of multiple motors, including the refrigeration compressor, water pump, cooling fan, and de-icing motor. As consumers expect quieter and more efficient products, ice maker cooling fans are gradually shifting from traditional single-phase AC motors to BLDC motors, which are smaller, more efficient, longer-lasting, and quieter.
For the ice maker market, Geehy provides a cost-effective and mass-production-ready FOC control solution. It supports 12V–24V and 10W–60W motor control applications. By adjusting the algorithm and hardware design, the solution can flexibly meet the needs of ice maker cooling fans and de-icing motors.
Geehy G32M3101 Ice Maker Cooling Fan/De-icing Motor Application
This application uses the Geehy G32M3101 highly integrated motor control SoC, which combines MCU, LDO, and gate driver in one chip. Together with three cost-effective PN MOSFETs, it requires only a simple peripheral circuit with standard resistors and capacitors. This enables a compact PCB design, reduces failure risk, and helps lower overall system cost.
Application Algorithm Overview
Geehy Proprietary Noise Reduction Algorithm | • Under the same operating conditions, this algorithm helps reduce motor noise compared with common industry solutions, improving the overall user experience. |
Single-Resistor Sampling FOC Control Algorithm | • The software observer estimates the rotor position and speed without using external mechanical position sensors. This improves reliability, extends service life, and supports smooth motor operation. |
Dual Closed-Loop + Field Weakening Control Technology | • The application uses speed-loop and current-loop dual closed-loop PI control to achieve precise speed regulation and stable operation. This helps quickly dissipate refrigerant heat. In special operating conditions, field weakening control can also be used to further improve efficiency. |
The G32M3101 ice maker cooling fan/de-icing motor application uses Geehy’s proprietary algorithms and open-source upper-layer code. Customers only need to adjust parameters or fine-tune application algorithms to adapt to different motor specifications and operating conditions, greatly shortening product development time.
Industrial-Grade Interference Immunity
Multiple motors work together inside an ice maker, creating a complex electromagnetic environment and frequent power fluctuations. Therefore, the MCU must meet higher EFT/EMI/EMC immunity requirements than ordinary consumer electronics. The Geehy G32M3101 motor control SoC supports ESD protection of 4kV or above and passes the 150mA latch-up test, meeting industrial-grade application and certification requirements.
Application Features
High Integration | • The G32M3101 integrates multiple op-amps and comparators, simplifying peripheral circuits, reducing system complexity and BOM cost, and fitting well into the compact space of ice makers. |
| Low Electromagnetic Noise | • Sensorless FOC vector control supports single/dual-resistor sampling, helping reduce operating noise compared with competing solutions. |
| Excellent Startup Performance | • Supports 100% closed-loop startup success rate, smooth operation from 0 rpm to 1800 rpm, fast acceleration and deceleration, and smooth speed transitions. |
| Shortened Control Cycle | • Tasks such as temperature sampling, algorithm calculation, PWM generation, and fault diagnosis are efficiently scheduled. Per-unit data processing fully uses MCU performance without an FPU, helping shorten the control cycle. |
| Enhanced Thermal Dissipation | • Intelligent coordinated control improves heat dissipation efficiency by more than 30%, helping prevent overload and frequent start-stop problems caused by poor cooling. |
| Flexible Parameter Configuration | • Supports user-modifiable parameters and application-layer algorithm optimization, making it easy to adapt to motors with different specifications. |
| Rich Speed Control Interfaces | • Supports USART, PWM, and VSP speed control methods, as well as fault indication and one-key shutdown functions. |
| Wide Voltage & High Power | • Supports 12V–30V DC wide-voltage input, compatible with 12V/24V systems, and meets 20–60W power requirements. |
| Multiple Protection Mechanisms | • Integrates over-voltage, under-voltage, software/hardware overcurrent, blocked airflow, and locked-rotor protection for safer and more reliable operation. |
| Low-Cost Development | • Uses three low-cost PN MOSFETs to reduce system cost and minimize PCB area. |

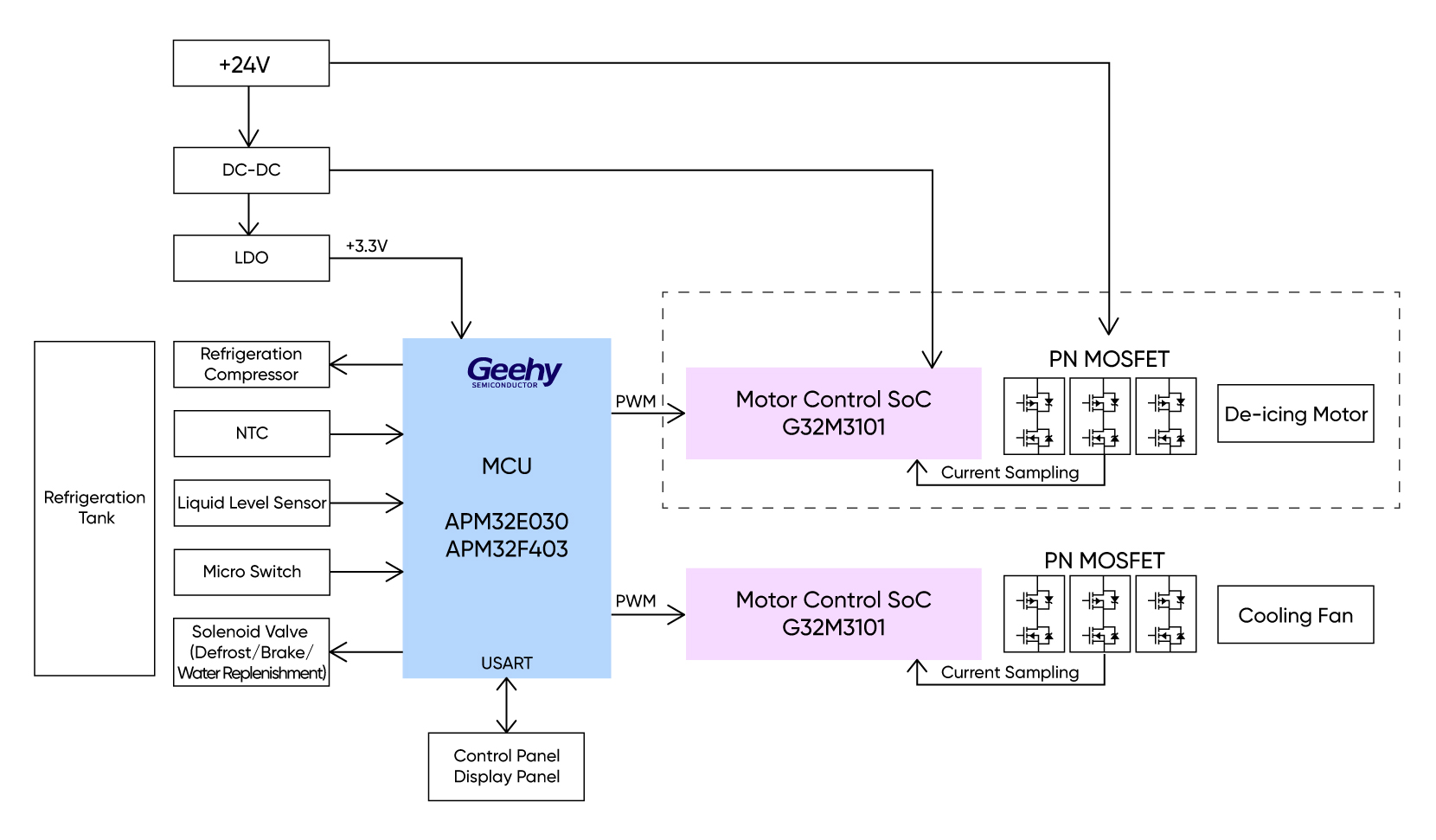

Block Diagram
For ice maker main control chips, Geehy offers a competitive MCU product portfolio. With strong interference immunity and industrial-grade quality, Geehy MCUs can handle complex electromagnetic environments. Geehy also provides a mature development ecosystem and rich low-level code examples to help customers shorten development cycles and speed up product launch. For different market segments, Geehy offers the following main control solutions:
• Household Ice Maker Main Control MCU:
The basic extended APM32E030 MCU uses a Cortex-M0+ core running at 72MHz, with built-in 64KB Flash and 8KB SRAM. It supports HBM ±4kV, providing strong ESD protection and electromagnetic immunity. Its operating temperature range of -40°C to 85°C/105°C helps ensure stable operation in complex environments.
• Commercial Ice Maker Main Control MCU:
The high cost-effective APM32F403 MCU uses a Cortex-M4F core running at 120MHz, with built-in 128KB Flash and 32KB SRAM. It supports a single-precision FPU and two DMA units with twelve data streams, delivering strong computing performance and improving algorithm processing speed.
G32M3101 Motor Control SoC Overview
The G32M3101 motor control SoC is based on a Cortex-M0+ core running at 64MHz. It integrates a 40V 3P+3N gate driver and a 5V/60mA LDO, includes a built-in DIV/MULT algorithm acceleration unit, and provides rich peripherals such as ADC, amplifiers, comparators, UART, and SPI to meet different control and high-speed communication needs.
For the ice maker application market, the Geehy G32M3101 cooling fan/de-icing motor application helps solve the large size, high noise, and low efficiency issues of traditional solutions. With Geehy’s proprietary algorithms and open-source upper-layer code, customers can adjust parameters and application algorithms for different motor control conditions, enabling “one codebase for multiple scenarios,” lowering development difficulty, and accelerating product launch.
