As the first product in Geehy's new-generation G32F0 motor control MCU platform, the G32F031 features a Cortex-M0+ core at 64MHz, with 64KB Flash and 8KB SRAM. It integrates MULT/DIV/CRC accelerators, a 2 MSPS ADC, op-amps, comparators, and SPI/I2C/U(S)ART interfaces. Suitable for electric tools, vacuum cleaners, high-speed hair dryers, ESCs (automotive, marine, UAV), robotic joints, and low-voltage water pumps.

Packaging Roadmap

Performance

System

  • Arm® Cortex®-M0+
  • Operating frequency: 64MHz

Memory

  • Flash:64KB
  • SRAM:8KB

Power Supply and Management

  • VDD range: 1.8V to 5.5V
  • Supports POR/PDR
  • Supports programmable voltage detector

Timers

  • 16-bit advanced timer: 1
  • 32-bit general-purpose timer: 1
  • 16-bit basic timers: 2
  • 16-bit low-power timer: 1
  • Watchdog timers: 2
  • 24-bit SysTick timer: 1

I/O

  • Up to 29 I/Os
  • All I/Os are mapped external interrupt mapping

Analog Peripherals

  • 12-bit ADC: 1, 13 channels
  • Analog comparator: 4
  • Rail-to-rail operational amplifier: 2

Communication Interfaces

  • U(S)ART:2
  • SPI:1
  • I2C:1

Algorithm Units

  • CRC
  • DIV
  • MULT

Security

  • 96-bit unique device ID

Package

  • LQFP32
  • QFN32/24/20
  • SSOP24/28

Selection Tools

All Products
Reset
Search

Core

Frequency(MHz)

FLASH(KB)

SRAM(KB)

I/Os

Voltage(V)

GPTMR(16bit)

GPTMR(32bit)

Advanced TMR(16bit)

Basic TMR

Systick(24bit)

IWDT

WWDT

RTC

ADC 12-bit Cell

ADC 12-bit Channels

DAC 12-bit Cell

DAC 12-bit Channels

Analog Comparator

Operational Amplifier

TSC (Channels)

SPI

I2S

I2C

USART

CAN

SDIO

USB Device

CEC

Integrated Gate Driver

Driver Voltage(V)

LDO(V)

Floating Gate Voltage(V)

Package

DIV

CORDIC

T-sensor

0 results total entry

| Download Spreadsheet
Compare
Part No.
Core
Frequency(MHz)
FLASH(KB)
SRAM(KB)
I/Os
Voltage(V)
GPTMR(16bit)
GPTMR(32bit)
Advanced TMR(16bit)
Basic TMR
Systick(24bit)
IWDT
WWDT
RTC
ADC 12-bit Cell
ADC 12-bit Channels
DAC 12-bit Cell
DAC 12-bit Channels
Analog Comparator
Operational Amplifier
TSC (Channels)
SPI
I2S
I2C
USART
CAN
SDIO
USB Device
CEC
Integrated Gate Driver
Driver Voltage(V)
LDO(V)
Floating Gate Voltage(V)
Package
DIV
CORDIC
T-sensor

Block Diagram

Documentation
  • All
  • Data Sheet
  • User Manual
  • Application Note
  • Development Board Schematic
Format Size
G32F031 Datasheet Data Sheet V1.0 pdf 3.6 MB May 28, 2026
G32F031 User Manual User Manual V1.0 pdf 3.27 MB May 28, 2026
AN1177_Non-Blocking Bootloader Operation Guide Application Note V1.1 pdf 1.04 MB July 14, 2026
G32F031 Micro-EVB Schematic Diagram Development Board Schematic V1.0 pdf 219.11 KB June 16, 2026

Design Resources

Hardware Development Tools
Software Development Tools
  • All
  • Development Board
 Product

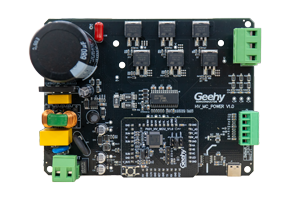

G32F031 High-Voltage Motor Evaluation Board Development Board

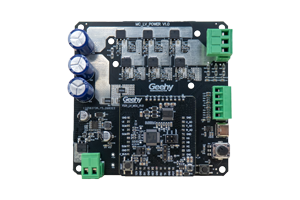

G32F031 Low-Voltage Motor Evaluation Board Development Board

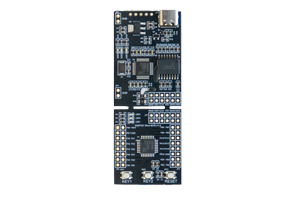

G32F031 Micro Evaluation Board Development Board
